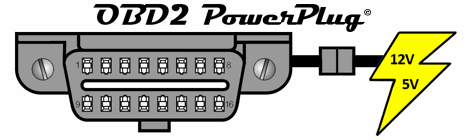

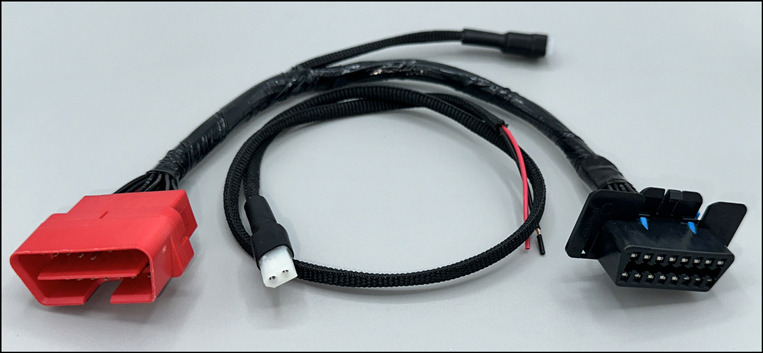

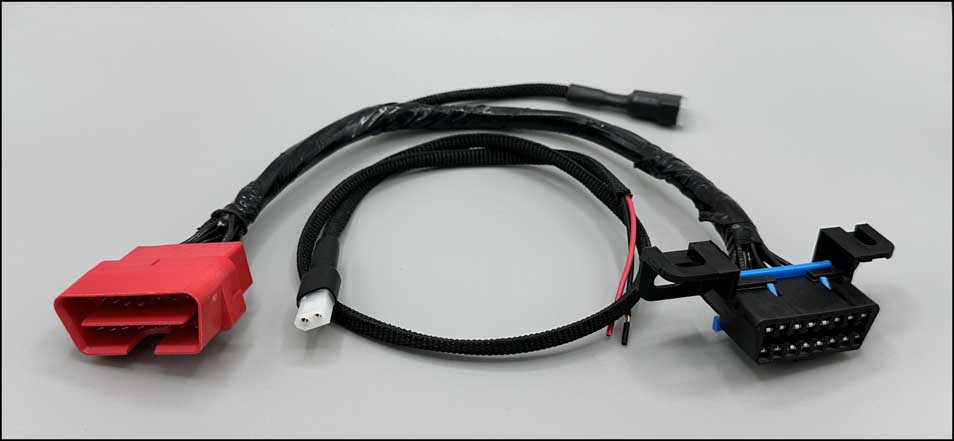

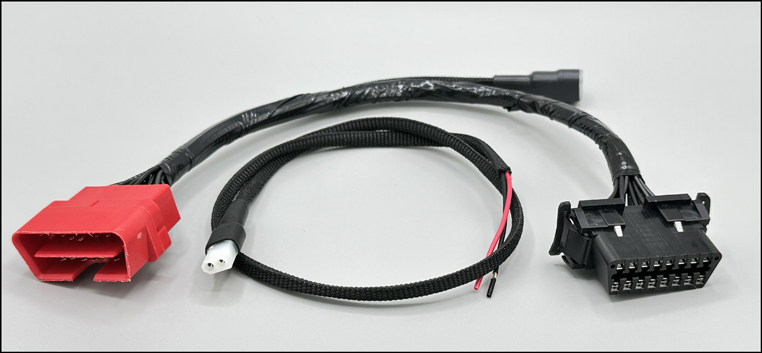

OBD PowerPlug
Our OBD2 PowerPlug is the fastest and easiest way to get 12VDC power on virtually any modern

automobile in the US. It can be installed in 2 minutes or less in most cases and will not interfere with OBD

scan equipment. It's the perfect option for covert equipment installs, time saving installs, or vehicles with

difficult wiring issues. Our cables come standard with a bare end pigtail providing 12VDC. A USB end

(micro or mini) providing 5VDC is available as well. Custom length PowerPlugs and pigtails are also available

upon request.

StreetLight PowerPlug
The Street Light PowerPlug provides a convenient, inconspicuous way to power equipment attached to poles.
Simply remove the current photocell and replace with the Street Light PowerPlug.
Our product provides advantages over standard ancillary power taps that mount between the light and photocell by:

* Utilizing industry standard, commercial grade photocells
* Providing a lower profile
* Drawing 105-305VAC continuous power for your device while providing dusk to dawn switching for the street light.

The Street Light PowerPlug is available in any length.
We offer standard termination ends of 1-15R (two prong, non-grounded), C-13 (rectangular, non-grounded),
and ROJ bare wire ends.

Technical specs:

• Silicon light sensor
• MOV surge protection rated for 320 Joules/9,500 Amps
• Sealed relay rated for a minimum of 5,000 operations at full load
• Turn-Off light level is 1.5 times turn-On level
• Dielectric strength: 5000V per ANSI
• Polypropylene cover, neoprene gasket, brass legs, acrylic window
• Complies with ANSI C136.10-1996
• RoHS compliant
• Load rating: 1000W, 1800 VA ballast
• -40 to +70°C ambient, up to 90° interface per ANSI
• Power consumption: 0.5W

To get a quote for any of our products, please call or email.
